Microporous turning bar
Non-contact guidance of sensitive materials.
Contactless web guiding
Gentle deflecting and turning

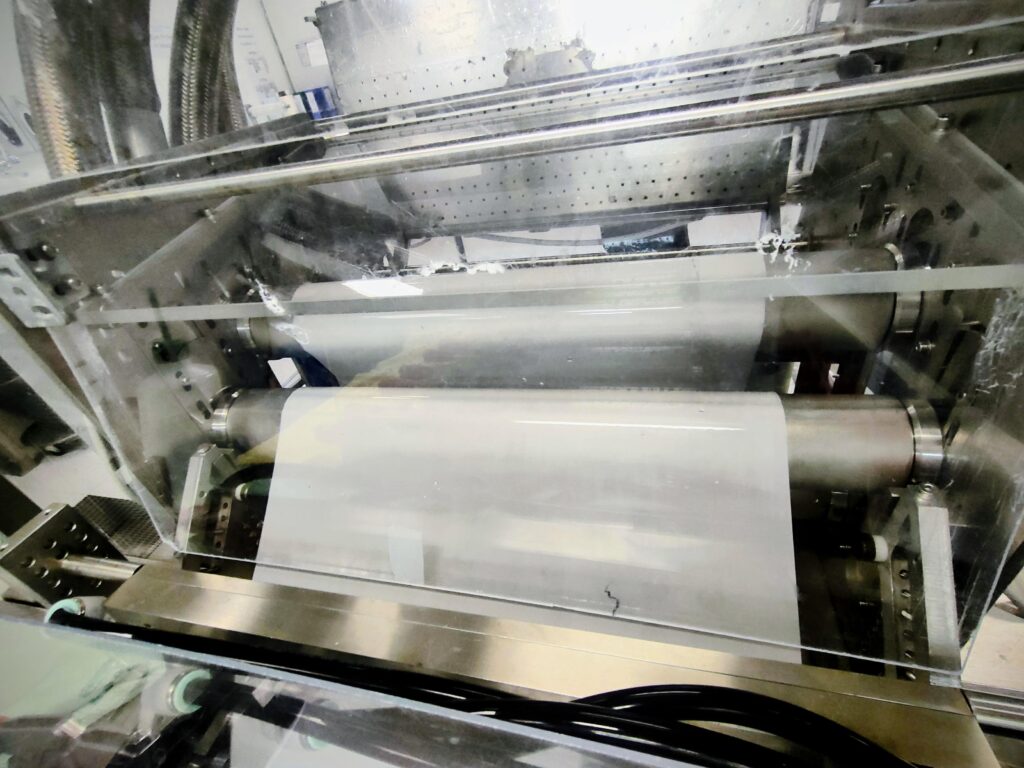

Printum’s microporous turning bars are used for contact-free guiding, deflecting, turning and transporting particularly sensitive material webs made of film, paper or metal.
Scratch-sensitive, fragile and self-adhesive roll goods cannot be guided over standard rollers, but must be guided without contact. Our microporous turning bars create a homogeneous air cushion over which your web will float without contact.
Advantages
The real alternative
to drilled deflection rollers

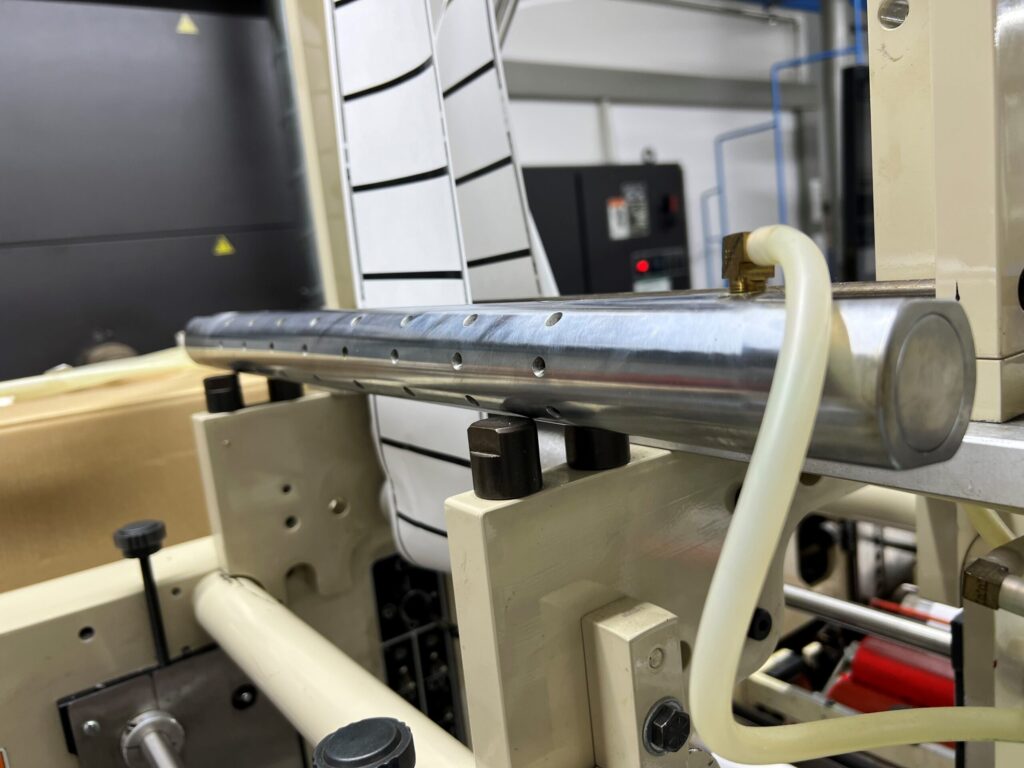

- Drastically reduced compressed air consumption ➔ compared to drilled rods
- Correspondingly almost noiseless
- No heat development on the surface, as there is no contact
- No chemical non-stick agents necessary
- Easy integration even in tight installation spaces and in applications such as the Multilayer Label Converting Kit
Specifications
Technical data
- Stainless steel base body
- Available in lengths up to 1,200 mm
- Diameter up to 150 mm
- Air outlet 10 to 360 degrees – depending on the desired wrap angle
- Equipped with individual end heads
- Requires compressed air
Contact
Do you want to replace your drilled turning bars to reduce your compressed air consumption? We will be happy to answer your questions about the microporous turning bar or otherproducts from our range. Please contact us without obligation.
