Microporous
Turning bar
of sensitive materials.
Contactless
web guiding

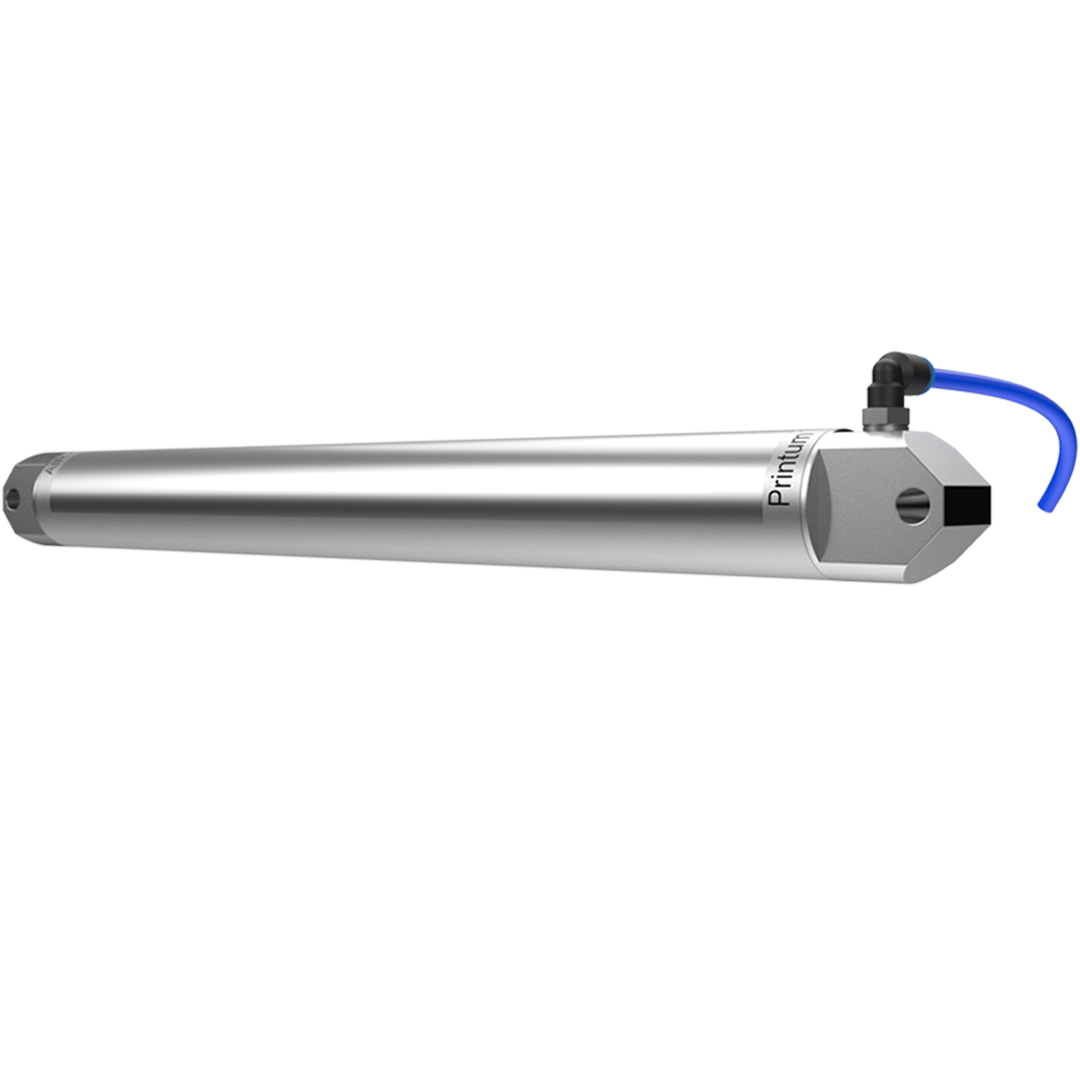

Microporous turning bars
Gentle deflecting and turning
Printum’s microporous turning bars are used for contact-free guiding, deflecting, turning and transporting particularly sensitive material webs made of film, paper or metal.

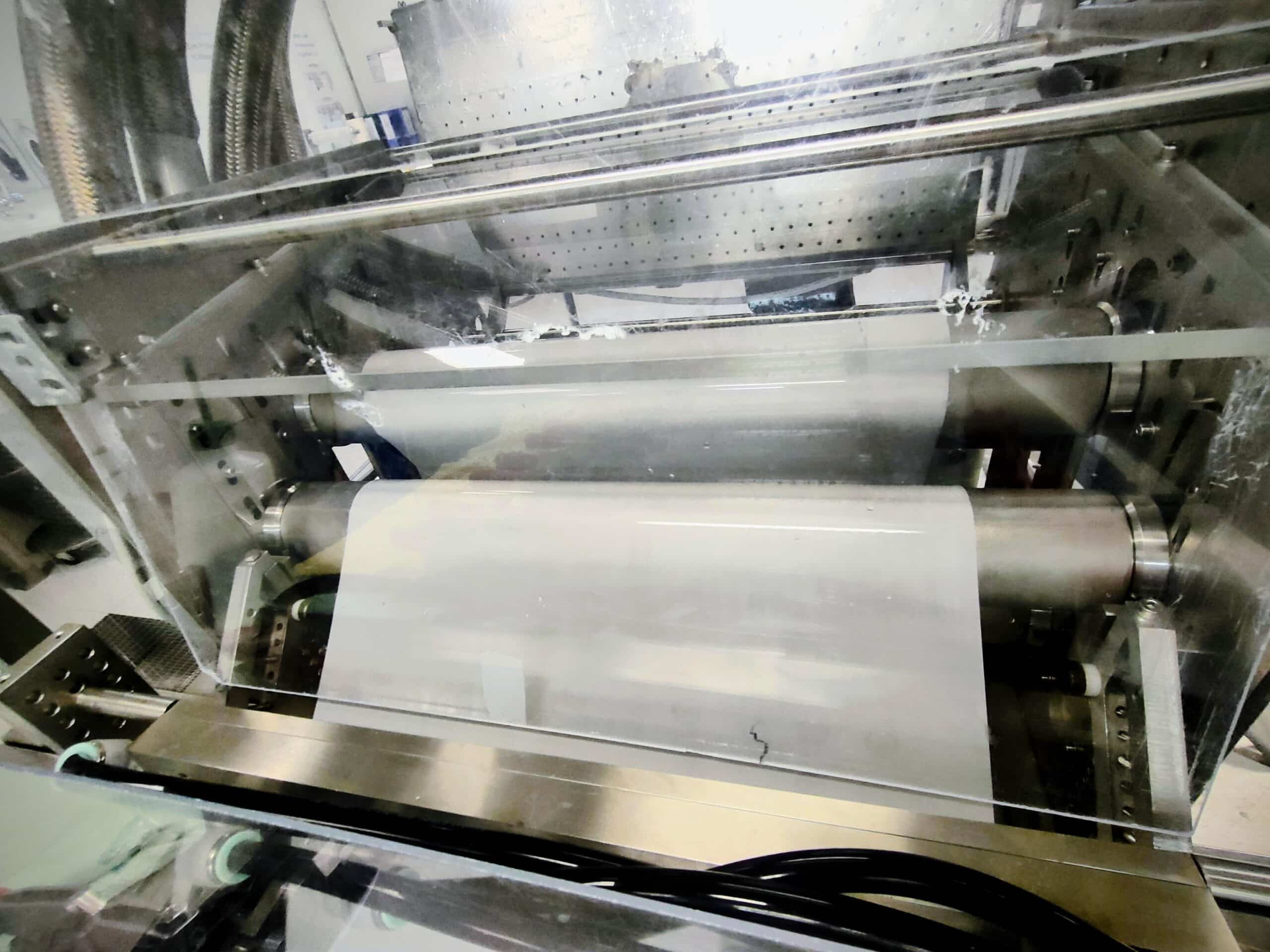

Scratch-sensitive, fragile and self-adhesive roll goods cannot be guided over standard rollers, but must be guided without contact. Our microporous turning bars create a homogeneous air cushion over which your web will float without contact.
Printum’s microporous turning bars are used for contact-free guiding, deflecting, turning and transporting particularly sensitive material webs made of film, paper or metal.
Scratch-sensitive, fragile and self-adhesive roll goods cannot be guided over standard rollers, but must be guided without contact. Our microporous turning bars create a homogeneous air cushion over which your web will float without contact.
Advantages
Gentle on materials and efficient.
- Drastically reduced compressed air consumption ➔ compared to drilled rods
- Correspondingly almost noiseless
- No heat development on the surface, as there is no contact
- No chemical non-stick agents necessary

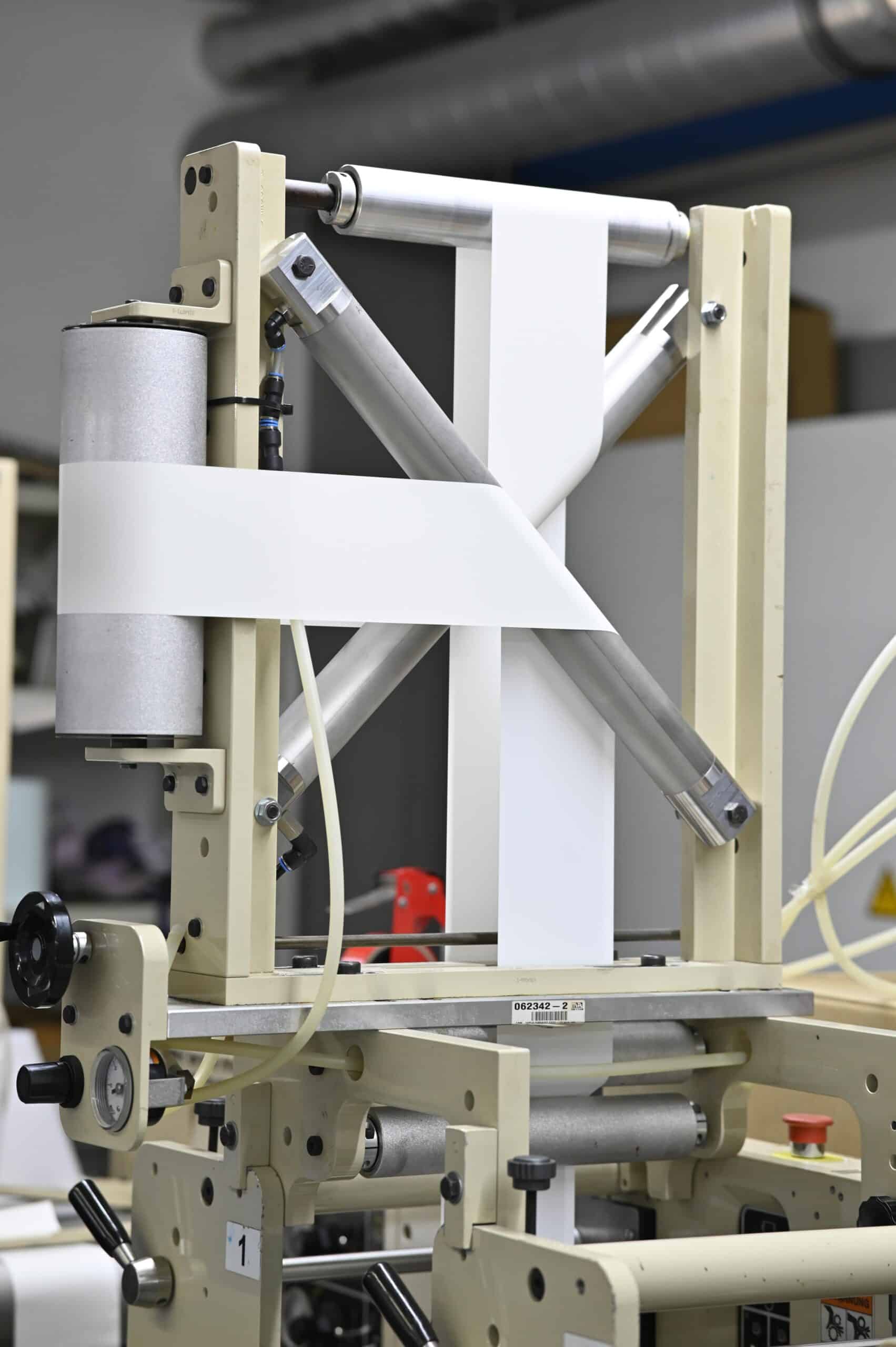

- Easy integration even in tight installation spaces and in applications such as the multilayer kit or our reversing crosses.

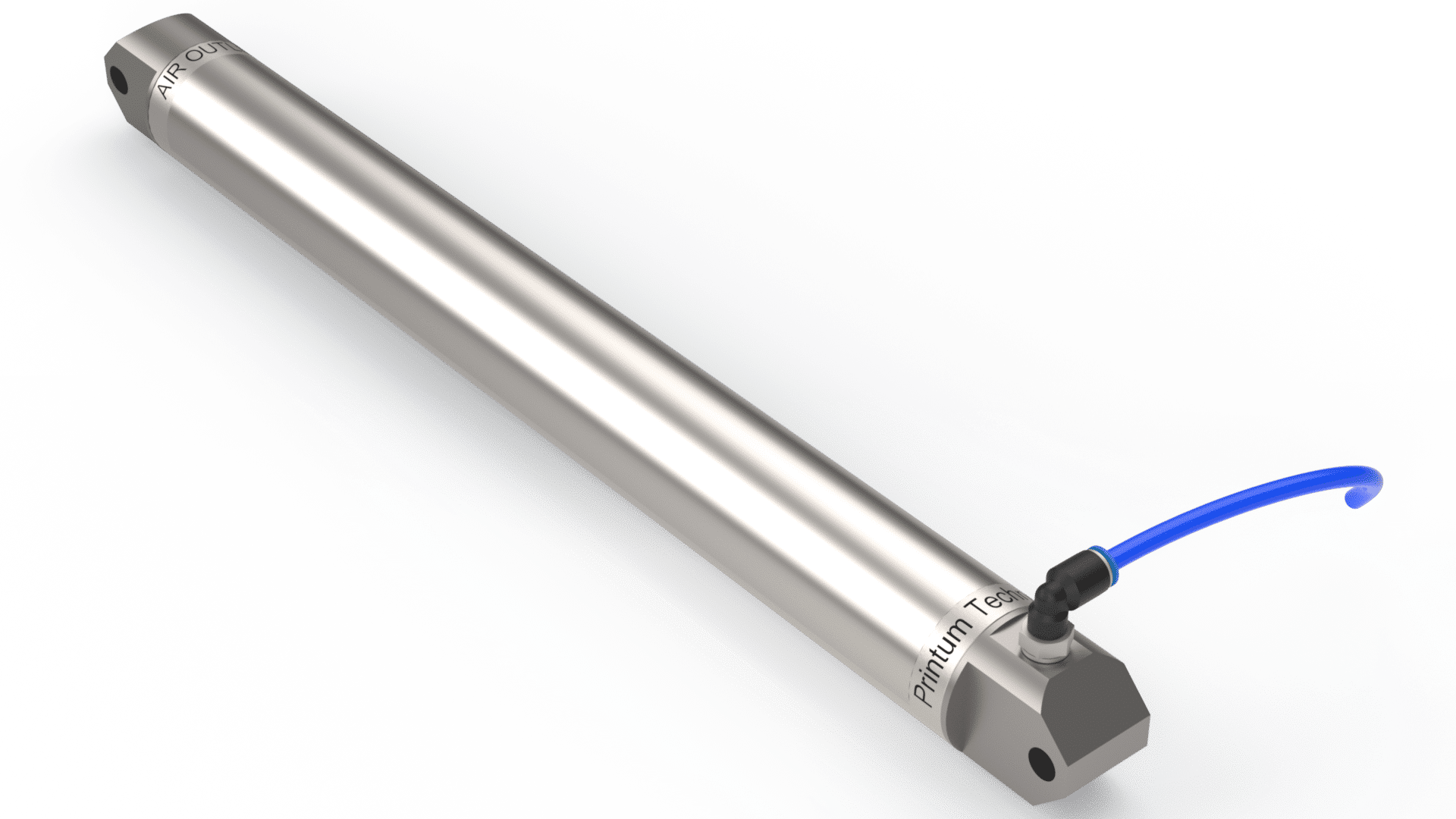

Specifications
Technical data
- Stainless steel base body
- Available in lengths up to 1,200 mm
- Diameter up to 150 mm
- Air outlet 10 to 360 degrees – depending on the desired wrap angle
- Equipped with individual end heads
- Requires compressed air
Application

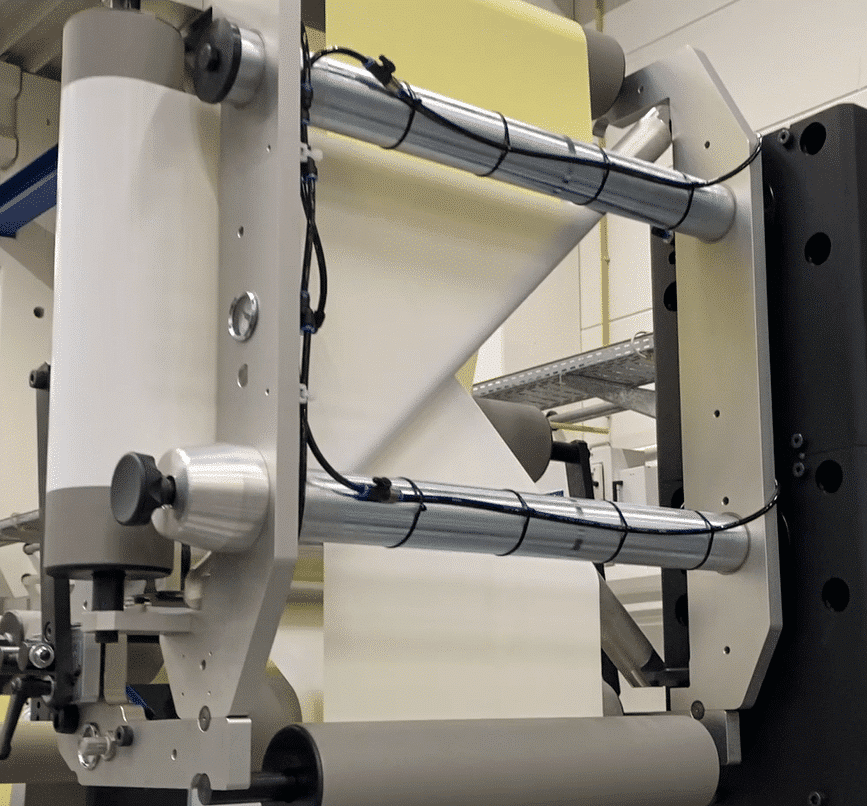

Label Printing & Converting
The real alternative to drilled deflection rollers!
Our microporous turner bars replace conventional rollers with drilled air holes and can be found in many label & tape converting systems worldwide. This web guiding solution is particularly economical and ideal for highly adhesive, freshly printed or particularly sensitive webs.
Contact
Do you want to replace drilled rollers and produce more economically?
Do you want to replace your drilled turning bars to reduce your compressed air consumption? We will be happy to answer your questions about the microporous turning rod or other products from our range. Please contact us without obligation.
