Multilayer Kit

Cross-over unit for multilayer label production.

Multilayer Label Converting

Sandwich labels
& peel-off labels on
your existing machine

Do you want to produce multilayer labels, but don’t know whether you can generate sufficient capacity utilization for a new multilayer label converting machine? Do you want to produce small to medium-sized quantities quickly and flexibly yourself?

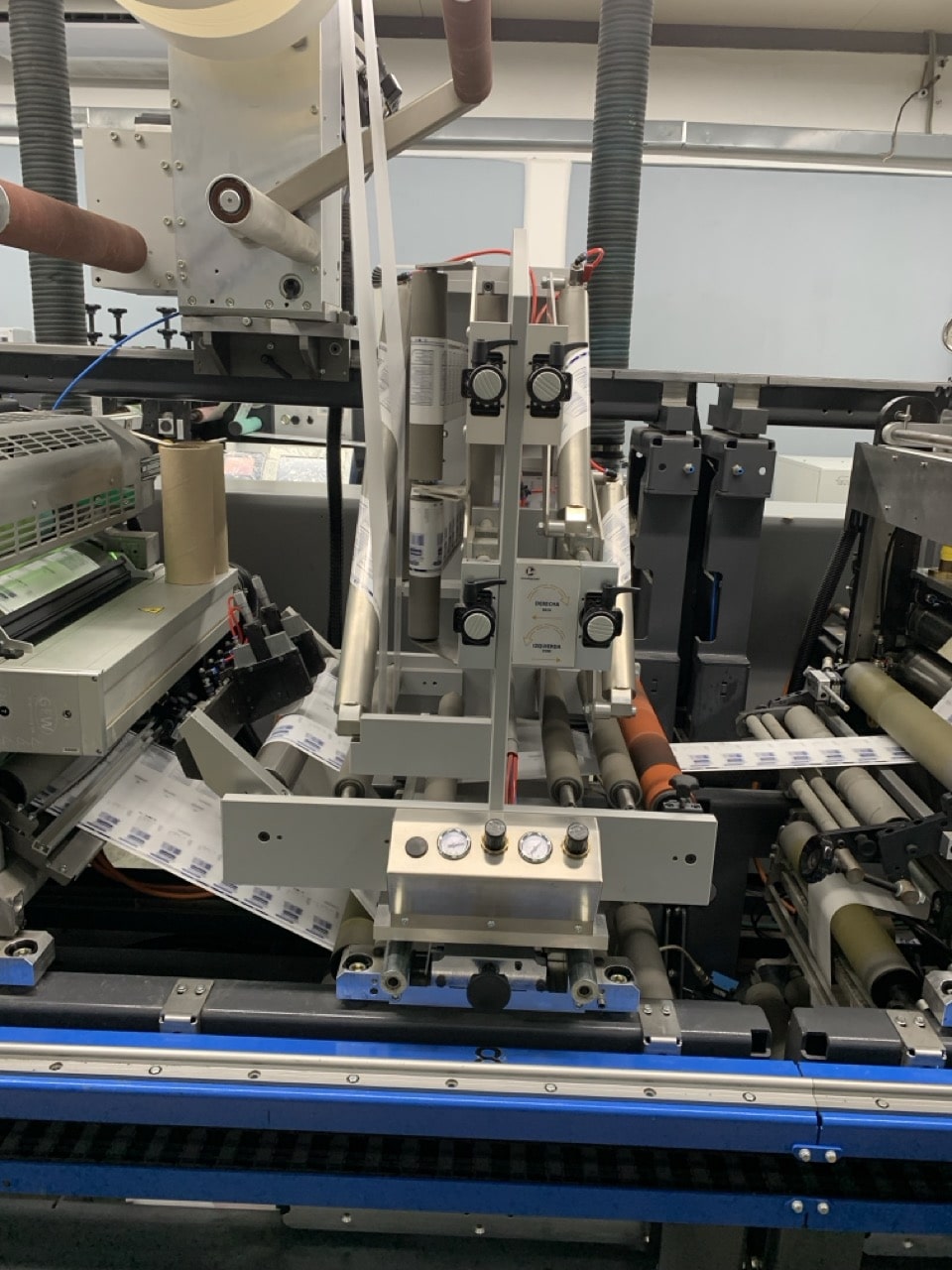

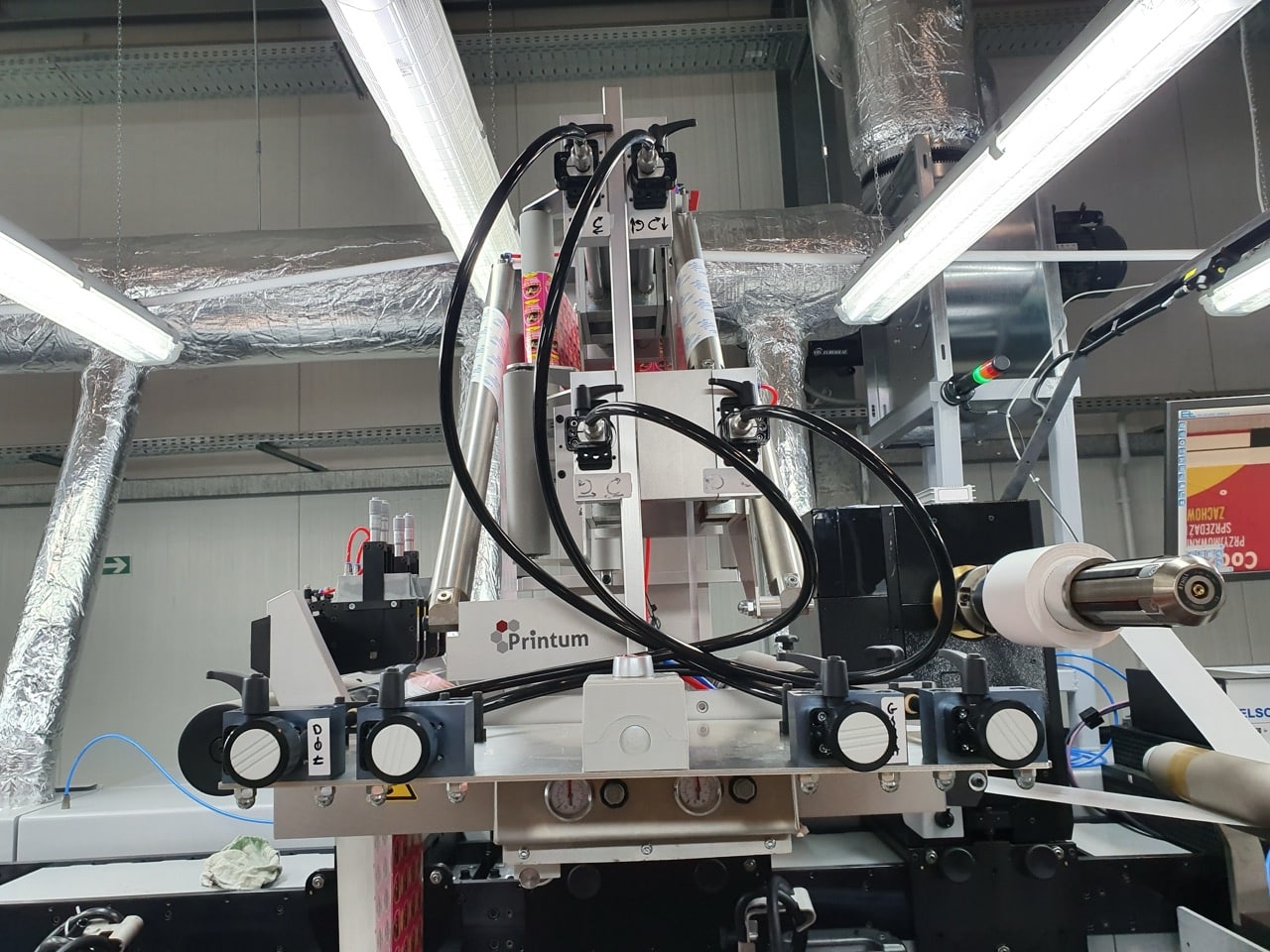

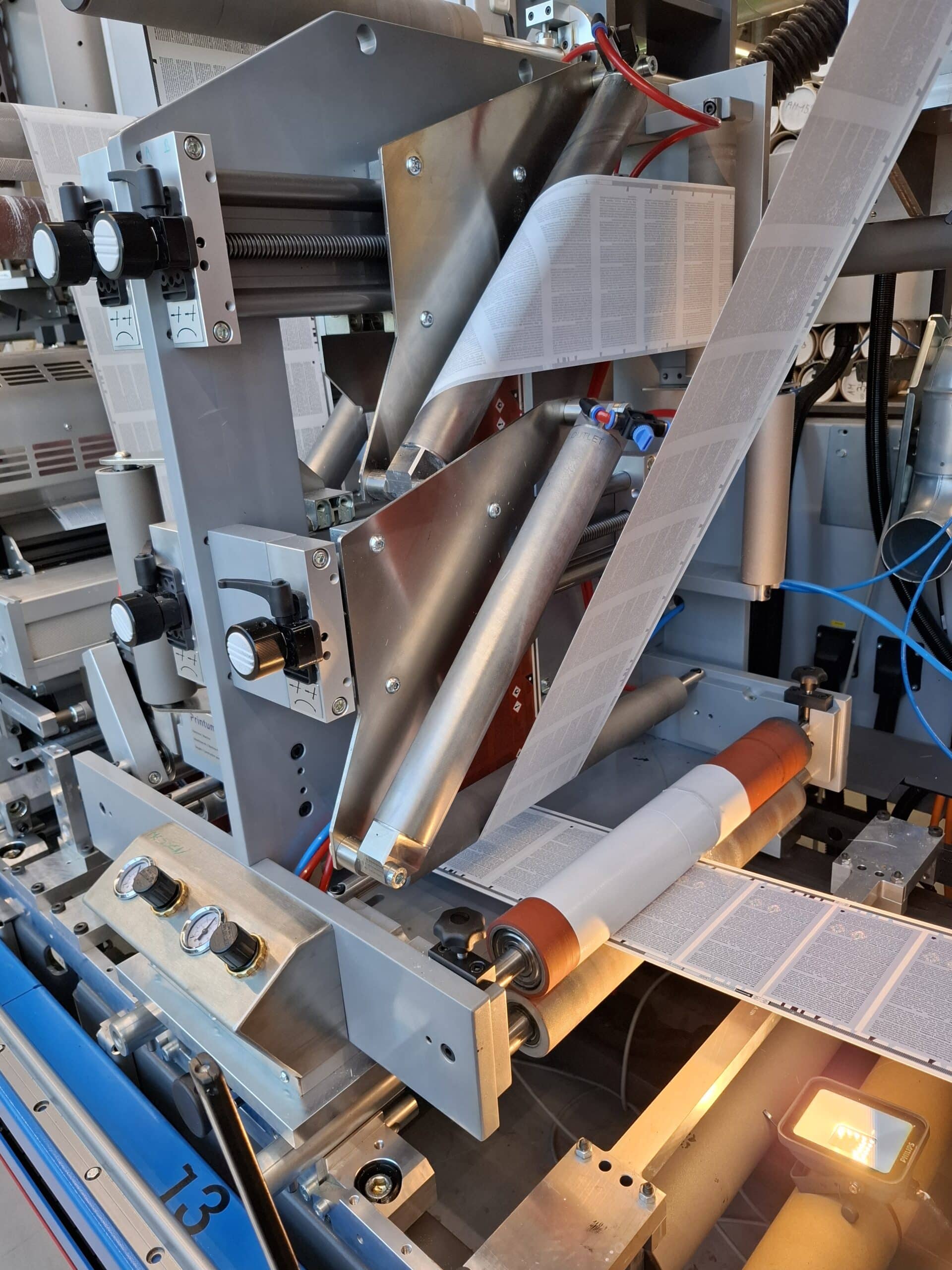

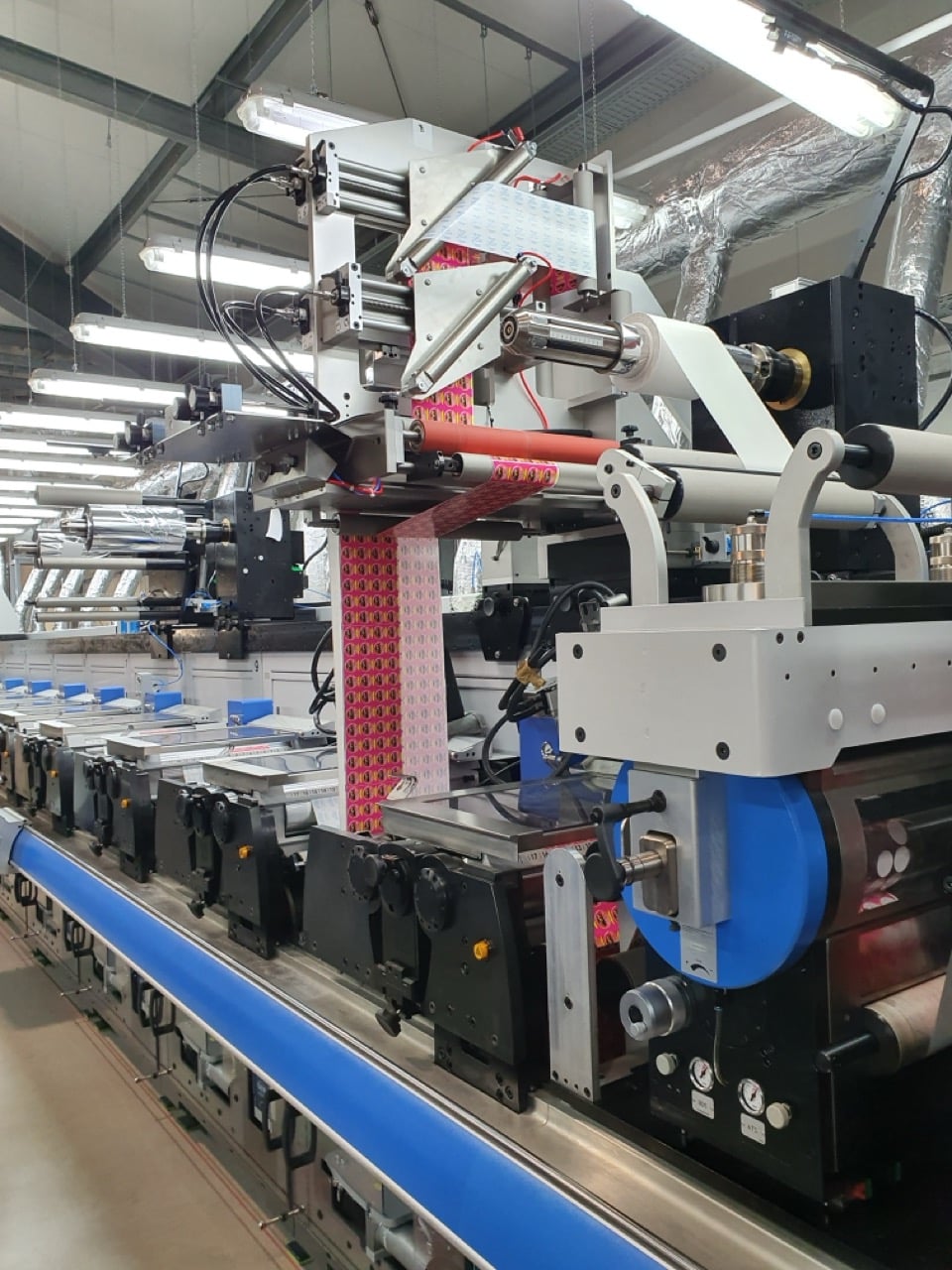

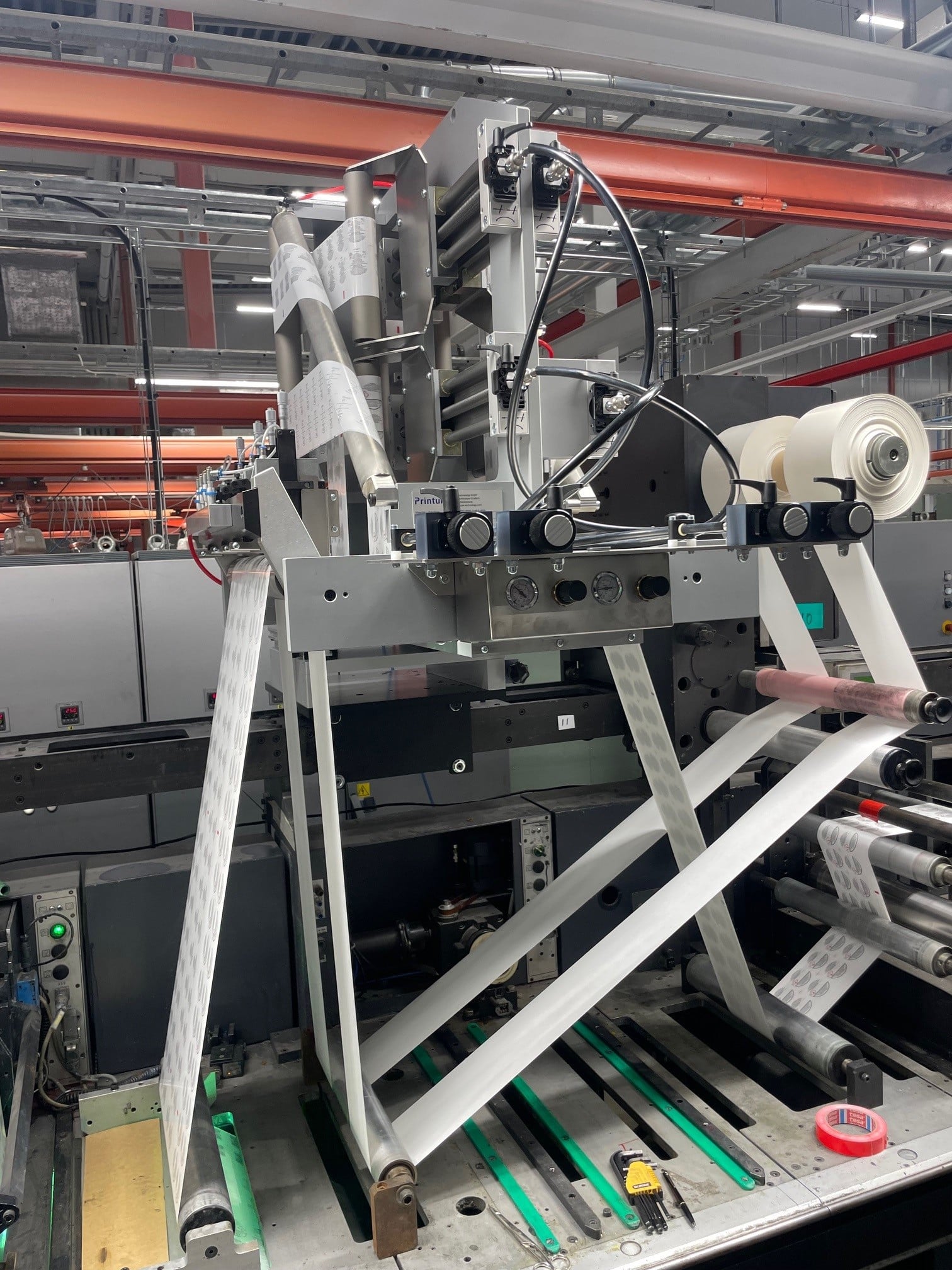

Then you are like many of our customers. For you, we have developed the Multilayer Kit. This compact retrofit can be easily integrated into your existing Gallus, Nilpeter, MPS, Mark Andy, Bobst, Omet, etc. label printing machine. Thanks to our plug & play technology, you can produce sandwich labels and peel-offs with up to three layers in no time.

ADVANTAGES

Compact, robust, intuitive.

  • Extension for your existing label printing press
  • Compatible with any label printing press or converting machinery
  • The most compact design on the market
  • Simple and fast installation
  • No electrical integration required
  • Durable and reliable
  • Intuitive operability
  • For non-contact web deflection, we integrated our microporous turning bars.

SPECIFICATIONS

Technical data & models

MLK 350

45-350 mm Web width
  • Dimensions:
    650 x 640 x 720 cm
  • Weight:
    approx. 120 kg
  • Web speed:
    up to 150 m/min, depending on material
  • Air consumption (at 2 bar):
    approx. 80 l/min
  • Maximum sound pressure in the operating range:
    < 70 db(A)
  •

MLK 450

45-450 mm Web width
  • Dimensions:
    800 x 710 x 820 cm
  • Weight:
    approx. 145 kg
  • Web speed:
    up to 150 m/min, depending on material
  • Air consumption (at 2 bar):
    approx. 80 l/min
  • Maximum sound pressure in the operating range:
    < 70 db(A)
  •

MLK 600

45-600 mm Web width
  • Dimensions:
    935 x 710 x 970 cm
  • Weight:
    approx. 185 kg
  • Web speed::
    up to 150 m/min, depending on material
  • Air consumption (at 2 bar):
    approx. 80 l/min
  • Maximum sound pressure in the operating range:
    < 70 db(A)
  •

Contact

Do you want to produce multilayer labels? We will be happy to answer your questions about the multilayer kit or other products from our range. Please contact us without obligation.
